INSULATION MATERIALS
Teck Hoe has a wide range of Insulflex insulation materials for the HVAC industries. We have ready stock insulation tubes, insulation sheets, insulation rolls, insulation tapes and adhesives.
Insulflex insulation tubes sizes range from ID of 1/4″ to 4-1/2″ with thickness of 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″ and 2″.
Insulflex insulation sheets is available as 4 feet x 3 feet sheets with thickness of 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″ and 2″.
Also available are Insulflex insulation rolls. Each roll is 4 feet x 30 feet with thickness of 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″ and 1-1/2″ except for 2″ x 3.28 feet x 8.2 feet.
Other materials such as Insulflex insulation tapes and adhesive to further ensure all are well insulated are also available.
TECHNICAL SPECIFICATIONS
Closed Cell Tubing, Sheet and Roll Insulation
PRODUCT TESTING EQUIPMENTS
Density Test
Flame Retardant Test
Smoke Density Test
Hardness Test
Batch Oven
CHARACTERISTICS & ADVANTAGES
The extreme flexibility of the material makes installation fast, easy and economical
Dust, fiber free and resistance to fungus growth
Low thermal conductivity (‘K’ Value) which makes it highly efficient and effective in the insulation of cooling or heating system
Self extinguished in nature
Closed cell structure forms a good water vapor barrier
Able to withstand tearing, rough handling and severe site conditions
Tensile Stress
Tensile strength to 3 Mpa,
hardness 55-80 density
which provide safety and
longer life span
Fire Resistance
Tested and conformed
to British Standard BS476:
Part 6 & 7
Thermal Insulating
Closed cell structure, thermal
conductivity 0.038W/mK,
conforms to ASTM C534
Standard
Water Resistance
Negligible water absorption
due to closed cell structure
Environment Friendly
Environment Friendly can be handling at anytime,
unlike five board system which is very
dusty during cutting
PRODUCT APPLICATIONS – HVAC-R
OTHER APPLICATIONS
Refrigerant Media
Good flexibility, easy installation and operation, applicable to the field of air conditioning refrigerant heat medium system brass
Chilled Water System
Excellent thermal insulation properties, can effectively prevent condensation generated, so air conditioning system performance significantly
Hot Water Piping System
Good insulation properties, soft and easy to install, so that less heat loss, more convenient installation
Ventilation Ductwork
Also comply with stringent multinational world fire standard. Greatly enhance the safety performance of the material for iron metal pipe thermal insulation field
Condensate System
Excellent resistance to water vapor permeability, softer and easy to install, suitable for condensing water pipe systems.
Sound absorbing sheet is divided into flat and concave – convex surface, it mainly plays the role of sound absorption, vibration and noise reduction
Act as good protection pads for walls and floors, safety for public area
Rubber foam insulation board are widely used in the heat protection for roofing
STANDARD INSULATION SIZES
Single Insulation Tubing
Insulation Sheet
Insulation Sheet Roll
PRE-INSULATED PAIRCOIL

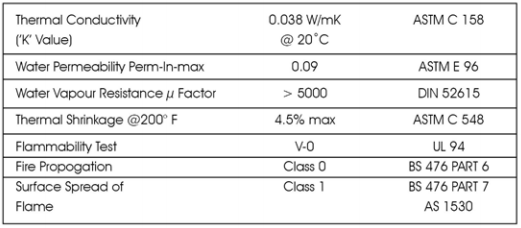

Insulation Properties
Insulflex SuperPair
Superior pre-insulated annealed copper tube is ideal for fast and cost effective split air conditioning installation
Insulflex SuperPair is made of high quality copper tube and pre-insulate with flexible closed cell nitrile rubber insulation
The advantages:
- Manfactured to AS 1530:3 Standard
- Comply to R22/R410A/R407C/R404A/R134A
- Flexible, quick and easy installation
- Continuous length
- Joint-free
High quality fire retardant closed cell nitrile rubber insulation pair coil with excellent insulating and water permeability properties to prevent condensation on the air-conditioning piping system.
Copper Composition(%)
Copper Tube Tensile Strength
ACCESSORIES

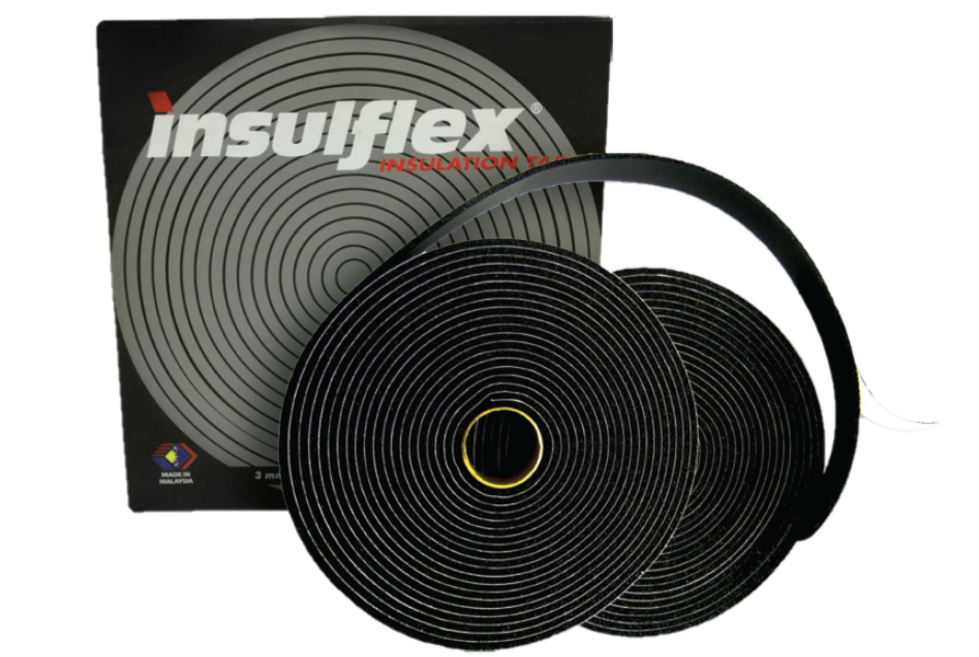

Insulation Tape
- Self Adhesive CFC free synthetic rubber insulation tape
- Ideal for insulating fittings, short pipe length, valves etc.
- Adhere firmly to all types of pipe metal surface

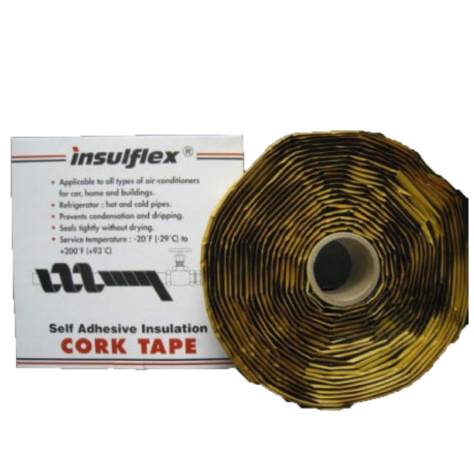

Cork Tape
- Applicable for all types of air-conditioning and refrigeration piping/ valves/ joints in home, commercial and industrial buildings
- Seals tightly to effectively prevent condensation in the cooling piping system
Adhesive
- Synthetic rubber based adhesive
- Ensure strong joining of insulation to avoid condensation
Pipe Support
- Closed cell structure completely seats out air and moisture
- High pressure foamed high density PEVA with special treatment for long service life
- Insulates against temperature, fire resistance
- Well designed for pipe support application, durable and high load bearing property
- CFC, HCFH free
